Friday, 6 July 2018

improve Micro-CAN VCDS logging performance rate (when you dont have a Turbo mode)

Micro-CAN from http://www.goapr.co.uk/support/datalogging.php

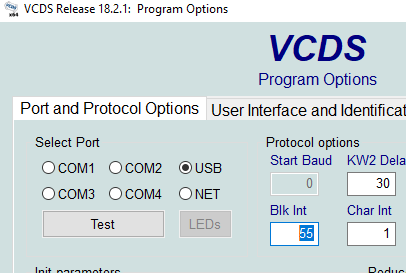

Note: If you data sample rate is low, expecially if you have no Turbo Mode option with the Micro Can cable, return to the home screen, click Options and change BLK INT to 25 and CHAR INT to 0.
so thats what I did, for info the
existing values were
  BLK INT 55 CHAR INT 1
 changed them to
  BLK INT 25 CHAR INT 0

see also http://www.ross-tech.com/vcds/tour/option_screen.php

  • Blk Int affects the protocol timing. The current default value is 55. To get the highest sample rate possible in the Measuring Blocks screen, set this to 25. Note, however, that this may cause unreliable communications with some controllers.
  • Char lnt 2K / Char Int also affects the protocol timing. This is called Char Int 2K and the default value is 6 when used with a HEX-NET or HEX-V2. This is called Char Int and the default value is 1 when used with a legacy interface. To get the highest sample rate possible in the Measuring Blocks screen, set this to 0. Note, however, that this may cause unreliable communications with some controllers.
